ibm power10 9105-22A, 9105-22B, or 9786-22H system parts 销售和技术服务

ibm power10 9105-22A, 9105-22B, or 9786-22H system parts 销售和技术服务-->霍工 13301272832(微信同号)

Index number	CCIN Part number	Units per assembly	Description	Mobile Phone
1	02YK553	1	Slide rail kit - contains left and right slide rails and attaching screws	霍工--》13301272832(微信同号)
2	02YK555	1	Cable management arm assembly	霍工--》13301272832(微信同号)
3		1	Electronic Industries Association (EIA) latch (right)	霍工--》13301272832(微信同号)
4		3	Screws	霍工--》13301272832(微信同号)
5	02YK164	1	Front bezel (9105-22A)	霍工--》13301272832(微信同号)
5	02YK340	1	Front bezel (9105-22B)	霍工--》13301272832(微信同号)
5	02YK267	1	Front bezel (9786-22H)	霍工--》13301272832(微信同号)

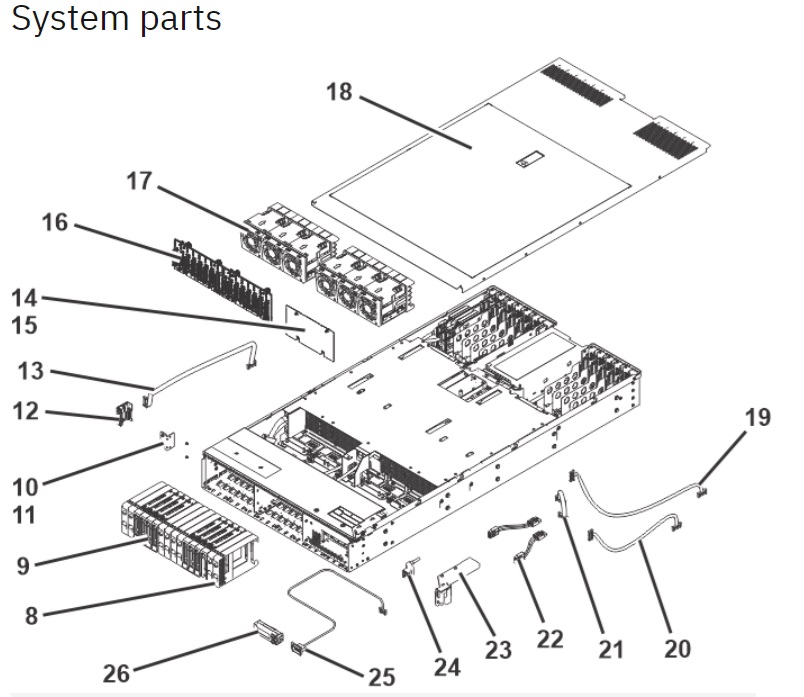

Table 2. System parts

Index number	CCIN	CCIN Part number (Supermicro part number)	Units per assembly	Description	Mobile Phone
8		01ML137	0-16	Drive filler	霍工--》13301272832(微信同号)
9	5949	02YC661	0-8	800 GB 7 mm NVMe U.2 drive Note: Supported only on the AIX® and Linux® operating systems.	霍工--》13301272832(微信同号)
9	59B7	02YC615	0-8	800 GB 7 mm NVMe U.2 drive Note: Supported only on the AIX and Linux operating systems.	霍工--》13301272832(微信同号)
9	5947	01LU974	0-8	800 GB 7 mm NVMe U.2 drive Note: Supported only on the IBM® i operating system.	霍工--》13301272832(微信同号)
9	5950	02YC895 or 02YC911*	0-8	0-8 800 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
9	5B53	02YC724 or 02YC738*	0-8	800 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
9	5951	02YC896 or 02YC912*	0-8	1600 GB 15 mm NVMe U.2 drive
9	59B8	01LU967	0-8	1600 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
9	5B52	02YC725 or 02YC739*	0-8	1600 GB 15 mm NVMe U.2 drive
9	5952	02YC897 or 02YC913*	0-8	3200 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
9	59B9	01LU968	0-8	3200 GB 15 mm NVMe U.2 drive
9	5B51	02YC726 or 02YC740*	0-8	3200 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
9	5953	02YC898 or 02YC914*	0-8	6400 GB 15 mm NVMe U.2 drive
9	59BA	01LU969	0-8	6400 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
9	5B50	02YC727 or 02YC741*	0-8	6400 GB 15 mm NVMe U.2 drive
9	5941	02YC749 or 02YC940*	0-8	15360 GB 15 mm NVMe U.2 drive	霍工--》13301272832(微信同号)
10			1	EIA bracket (left)	霍工--》13301272832(微信同号)
11			2	Screws	霍工--》13301272832(微信同号)
12	6B85	02PX028	1	Control panel	霍工--》13301272832(微信同号)
13		02YK426	1	Control panel cable	霍工--》13301272832(微信同号)
14		02YK159	1	Drive backplane filler	霍工--》13301272832(微信同号)
15				Screws	霍工--》13301272832(微信同号)
16	6B89	02WG685	2	Drive backplane	霍工--》13301272832(微信同号)
17	7B5G	02YK237	6	Fan	霍工--》13301272832(微信同号)
18			1	Top cover assembly	霍工--》13301272832(微信同号)
19		02YK421	1	Drive backplane signal cable for the drive backplane at location P1	霍工--》13301272832(微信同号)
20		02YK422	1	Drive backplane signal cable for the drive backplane at location P2	霍工--》13301272832(微信同号)
21		02YK429	1	Fan signal cable	霍工--》13301272832(微信同号)
22		02YK419	2	Drive backplane power cable	霍工--》13301272832(微信同号)
23			1	Front USB cover and EIA bracket (right)	霍工--》13301272832(微信同号)
24		02YK430	1	Front USB cable	霍工--》13301272832(微信同号)
25		02YK428	1	Control panel display cable and holder	霍工--》13301272832(微信同号)
26	6B86	02WF367	1	Control panel display * Order the same part number as the drive that you are replacing.	霍工--》13301272832(微信同号)

Additional system parts

Index number	CCIN	CCIN Part number (Supermicro part number)	Units per assembly	Description	Mobile Phone
27		02YK432	0-1	NVMe cable for the drive backplane at location P2	霍工--》13301272832(微信同号)
28		02YK415	0-1	NVMe cable for the drive backplane at location P1	霍工--》13301272832(微信同号)
29			0-2	NVMe JBOF adapter. Use the feature code of the adapter to find the FRU number in Adapter information by feature code.	霍工--》13301272832(微信同号)
30		02YK042	11	Adapter divider	霍工--》13301272832(微信同号)
31		46K5109	0-11	Adapter filler	霍工--》13301272832(微信同号)
32				Cryptographic Coprocessor. Use the feature code of the adapter to find the FRU number in Adapter information by feature code.	霍工--》13301272832(微信同号)
33		6B58	1	eBMC card Notes: For systems with system firmware level FW1020.xx, order part number 02WF327. For systems with system firmware level FW1030.xx or later, order part number 03KP670.	霍工--》13301272832(微信同号)
34				Ethernet adapter. Use the feature code of the adapter to find the FRU number in Adapter information by feature code.	霍工--》13301272832(微信同号)
35				Cable adapter. Use the feature code of the adapter to find the FRU number in Adapter information by feature code.	霍工--》13301272832(微信同号)
36				Adapter. Use the feature code of the adapter to find the FRU number in Adapter information by feature code.	霍工--》13301272832(微信同号)
37	51E9	03FP378	2	2000 W power supply	霍工--》13301272832(微信同号)
38		94Y9445	2	Power supply filler	霍工--》13301272832(微信同号)
39		00FW701	1	Power signal cable	霍工--》13301272832(微信同号)

Additional system parts (continued)

Index number	CCIN	CCIN Part number (Supermicro part number)	Units per assembly	Description	Mobile Phone
40	329A	78P7343	2-32	16 GB DDR4 DDIMM	霍工--》13301272832(微信同号)
40	327A	78P7344	2-32	32 GB DDR4 DDIMM	霍工--》13301272832(微信同号)
40	327B	78P7345	2-32	64 GB DDR4 DDIMM	霍工--》13301272832(微信同号)
40	327C	78P7346	2-32	128 GB DDR4 DDIMM	霍工--》13301272832(微信同号)
40	32A1	03HD880	2-32	32 GB DDR5 DDIMM	霍工--》13301272832(微信同号)
40	32A2	03HD881	2-32	64 GB DDR5 DDIMM	霍工--》13301272832(微信同号)
40	32A3	03HD882	2-32	128 GB DDR5 DDIMM	霍工--》13301272832(微信同号)
40		2YK346	0-30	DIMM filler	霍工--》13301272832(微信同号)
41		02YK287	Memory retainer for memory locations P0-C27 through P0-C37 or P0-C38 through P0-C48		霍工--》13301272832(微信同号)
42		02YK115		Memory retainer for memory locations P0-C12, P0-C13, P0-C25, or P0-C26	霍工--》13301272832(微信同号)
43		02YK114		Memory retainer for memory locations P0-C16 through P0-C21	霍工--》13301272832(微信同号)
44	2E32	02CM285	2	Voltage regulator module	霍工--》13301272832(微信同号)
45	5C88	02YK846	2	System processor module kit (includes 4 core DD2.x processor module, processor handling tool, 4 mm Hex driver, TIM, tweezers, and air pump) (9105-22B)	霍工--》13301272832(微信同号)
45	5C8A	02YK847	2	System processor module kit (includes 8 core DD2.x processor module, processor handling tool, 4 mm Hex driver, TIM, tweezers, and air pump) (9105-22B)	霍工--》13301272832(微信同号)
45	5C87	02YK844	2	System processor module kit (includes 12 core DD2.x processor module, processor handling tool, 4 mm Hex driver, TIM, tweezers, and air pump) (9105-22A or 9786-22H)	霍工--》13301272832(微信同号)
45	5C86	02YK842	2	System processor module kit (includes 16 core DD2.x processor module, processor handling tool, 4 mm Hex driver, TIM, tweezers, and air pump) (9105-22A or 9786-22H)	霍工--》13301272832(微信同号)
45	5C85	02YK840	2	System processor module kit (includes 20 core DD2.x processor module, processor handling too l, 4 mm Hex driver, TIM, tweezers, and air pump) (9105-22A or 9786-22H)	霍工--》13301272832(微信同号)
46		02YK827	Heat sink kit (includes heat sink, TIM, and tweezers)		霍工--》13301272832(微信同号)
47		02YK226	0-1	Voltage regulator module filler	霍工--》13301272832(微信同号)
48	6B59	02WF429	1	Trusted platform module	霍工--》13301272832(微信同号)
49	2E2D	03KP325	1	System backplane	霍工--》13301272832(微信同号)
50				Screws	霍工--》13301272832(微信同号)
51	1	Chassis	霍工--》13301272832(微信同号)
52		00RY543	1	Time-of-day batteryv	霍工--》13301272832(微信同号)
