IBM Power8 S814(8286-41A)、CCIN、FRU、PN-->联系-->霍工-->手机13301272832

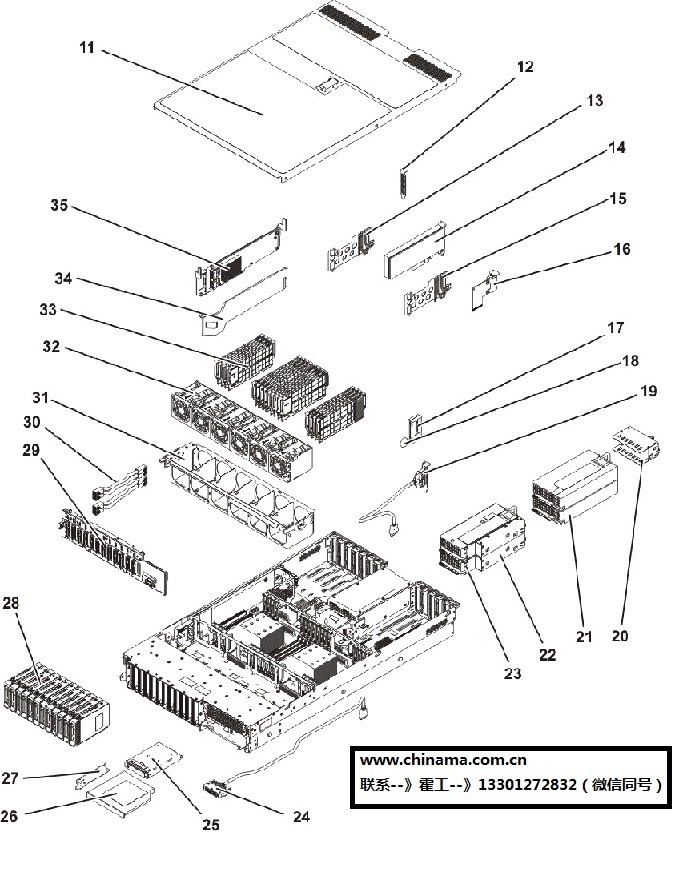

Table 1. Rack assembly part numbers (base and expanded function)Index number CCIN Part number Units per assembly Description
1 00FV716 1 Front bezel (5148-21L or any base function 8247-21L, 8247-22L, 8284-21A, or 8284-22A)
1 00FV715 1 Front bezel (5148-22L or any expanded function 8247-21L, 8247-22L, 8284-21A, or 8284-22A)
2 00E7328 1 EIA bracket (left)
3 90P1959 2 Attaching screw for EIA bracket (left)
4 68Y7226 1 Rail kit - contains left and right rails and attaching screws
5 1 Attaching screw for rail kit
6 74Y9063 1 Cable management arm assembly
7 68Y7226 1 Rail kit - contains left and right rails and attaching screws
8 1 Attaching screw for rail kit
9 00E7329 1 EIA bracket (right)
10 90P1959 2 Attaching screw for EIA bracket (right)
///////////////////////////////////////////////////////////////////////////////////////////
Table 2. Rack assembly part numbers (base function)
Index number CCIN Part number Units per assembly Description
11 1 Top access cover assembly
12 00E7338 1 - 11 PCI tailstock
13 00E7333 1 - 7 PCI adapter divider (one light pipe)
14 1 - 8 PCI adapters. Use the CCIN or feature type of the adapter to find the FRU number
in PCI adapter information by feature type.
15 00FX240 1 PCI adapter divider (two light pipes)
16 00E2164 1 System I/O card
17 560F 00E3429 1 System VPD card (5148-21L, 8247-21L, or 8284-21A)
17 524D 00E3427 1 System VPD card (8247-22L)
17 52F5 00E2150 1 System VPD card (8284-22A)
18 74Y9628 1 Time-of-day battery
19 00E7324 1 Rear USB cable (5148-21L, 8247-21L, or 8284-21A)
20 1 - 2 Power supply filler
21 2B1E 94Y8157 1 - 2 1400 W 200-240 VAC Power supply assembly (5148-22L, 8247-22L, or 8284-22A)
21 2B75 00RR025 1 - 2 1400 W Power supply assembly (8247-21L, 8247-22L, or 8284-22A)
22 1 - 2 Power supply filler - Small form factor (SFF)
23 2B1D 00FV929 1 - 2 900 W Power supply assembly (5148-21L, 8247-21L, or 8284-21A)
23 51D8 00FX892 1 - 2 750 W Power supply assembly (8247-22L or 8284-22A)
24 00FW686 1 Front USB cable (8247-21L, 8247-22L, 8284-21A, or 8284-22A)
25 00E1966 1 Control panel assembly
26 1 DVD drive. See Managing DVD drives.
27 00FX140 1 DVD drive retain latch
28 1 - 12 See Disk drive and solid-state drive system parts.
29 2B09 00E1945 1 Disk drive backplane
30 00FV690 2 Front SAS cable (short)
31 01AF830 1 Fan cage assembly
32 00FV726 4 - 6 60 mm fan assembly
33 31E8 00VK192 1 - 8 or 1 - 16 16 GB, 1600 MHz DDR3 DIMM
33 31EC 00VK247 1 - 8 or 1 - 16 16 GB, DDR4 CDIMM
33 31E9 00VK194 1 - 8 or 1 - 16 32 GB, 1600 MHz DDR3 DIMM
33 31ED 00VK291 1 - 8 or 1 - 16 32 GB, DDR4 CDIMM
33 31EA 00VK196 1 - 8 or 1 - 16 64 GB, 1600 MHz DDR3 DIMM
33 31EE 00VK301 1 - 8 or 1 - 16 64 GB, DDR4 CDIMM
33 31EF 00VK273 1 - 8 or 1 - 16 128 GB, DDR4 CDIMM
33 00FW990 1 - 8 or 1 - 16 DIMM filler
34 00FV454 1 - 2 PCIe3 SAS RAID internal adapter filler
35 57D7 00MH906 1 - 2 PCIe3 x8 SAS RAID internal adapter
///////////////////////////////////////////////////////
Table 3. Rack assembly part numbers (expanded function)Index number CCIN Part number Units per assembly Description
11 1 Top access cover assembly
12 00E7338 1 - 11 PCI tailstock
13 00E7333 1 - 7 PCI adapter divider (one light pipe)
14 1 - 8 PCI adapters. Use the CCIN or feature type of the adapter to find the FRU number in PCI adapter information by
feature type.
15 00FX240 1 PCI adapter divider (two light pipes)
16 00E2164 1 System I/O card
17 560F 00E3429 1 System VPD card (8247-21L or 8284-21A)
17 524D 00E3427 1 System VPD card (5148-22L or 8247-22L)
17 52F5 00E2150 1 System VPD card (8284-22A)
18 74Y9628 1 Time-of-day battery
19 00E7324 1 Rear USB cable (8247-21L or 8284-21A)
20 1 - 2 Power supply filler
21 2B1E 94Y8157 1 - 2 1400 W 200-240 VAC Power supply assembly (5148-22L, 8247-22L, or 8284-22A)
21 2B75 00RR025 1 - 2 1400 W 192-400 HVDC power supply assembly (8247-22L or 8284-22A)
22 1 - 2 Power supply filler - Small form factor (SFF)
23 2B1D 00FV929 1 - 2 900 W Power supply assembly (8247-21L or 8284-21A)
24 00FW686 1 Front USB cable (8247-21L, 8247-22L, 8284-21A, or 8284-22A)
25 00FV824 1 SSD cage
25 00FV820 1 SSD cage EMC shield
26 2 Attaching screws for SSD cage
27 1 - 6 See Disk drive and solid-state drive system parts.
28 1 DVD drive. See Managing DVD drives.
29 00FX140 1 DVD drive retain latch
30 00E1966 1 Control panel assembly
31 1 - 8 See Disk drive and solid-state drive system parts.
32 2B5A 00E1978 1 Disk drive backplane
33 00FV690 1 Front SAS cable (short)
Note Used with the adapter at location Un-P1-C14.
34 00FV689 1 Front SAS cable (long)
Note Used with the adapter at location Un-P1-C15.
35 01AF830 1 Fan cage assembly
36 00FV726 4 - 6 60 mm fan assembly
37 31E8 00VK192 1 - 8 or 1 - 16 16 GB, 1600 MHz DDR3 DIMM
37 31EC 00VK247 1 - 8 or 1 - 16 16 GB, DDR4 CDIMM
37 31E9 00VK194 1 - 8 or 1 - 16 32 GB, 1600 MHz DDR3 DIMM
37 31ED 00VK291 1 - 8 or 1 - 16 32 GB, DDR4 CDIMM
37 31EA 00VK196 1 - 8 or 1 - 16 64 GB, 1600 MHz DDR3 DIMM
37 31EE 00VK301 1 - 8 or 1 - 16 64 GB, DDR4 CDIMM
37 31EF 00VK273 1 - 8 or 1 - 16 128 GB, DDR4 CDIMM
37 00FW990 1 - 8 or 1 - 16 DIMM filler
38 1 Backup power module card cage
39 1 - 2 Backup power module card
Note The backup power module card is included with the PCIe3 x8 cache SAS RAID internal adapter part number. Replace the PCIe3 x8 cache SAS RAID
internal adapter and the backup power module card together.
40 57D8 00MA025 1 - 2 PCIe3 x8 cache SAS RAID internal adapter (8247-21L or 8284-21A)
40 57D7 00MH906 1 - 2 PCIe3 SAS internal adapter
40 57DC 00WV511 1 - 2 PCIe3 x8 cache SAS RAID internal adapter
Note This adapter is supported only on the IBM? Elastic Storage Server.
41 00FV688 1 Rear SAS cable
/////////////////////////////////////////////////////
Table 4. Rack assembly part numbers (air-cooled base and expanded function)Index number CCIN Part number Units per assembly
Description
42 2CD7 00E2026 1 System backplane (5148-21L, 8247-21L, or 8284-21A)
42 2CD6 00E2022 1 System backplane (5148-22L, 8247-22L, or 8284-22A)
43 12 Attaching screws for system backplane
44 1 - 2 Processor module air baffle
45 54E9 00FX975 1
1 core 3.026 GHz processor module (8284-21A with the IBM i operating system)
4 core 3.026 GHz processor module (8284-21A with the AIX? operating system)
45 54E6 00FX522 1 - 2 6 core 3.89 GHz processor module (8284-22A)
45 54E8 00FX518 1 - 2 10 core 3.42 GHz processor module (5148-21L, 5148-22L, 8247-21L, 8247-22L, or 8284-22A)
45 54E4 00FX520 1 - 2 12 core 3.02 GHz processor module (8247-21L, 8247-22L, or 8284-22A)
46 00FV742 1 - 2 Heat sink
////////////////////////////////////////////////////////////
Table 5. Rack assembly part numbers (water-cooled base and expanded function)Index number CCIN Part number Units per assembly
Description
42 2CD6 00E2022 1 System backplane (8247-22L or 8284-22A)
Note Two water-cooled processor module kits must also be ordered when you replace the system backplane. For part number information, see table 7.
43 12 Attaching screws for system backplane
44 54E6 00FX522 1 - 2 6 core 3.89 GHz processor module (8284-22A)
Note One water-cooled processor module kit must also be ordered when you replace the processor module. For part number information, see table 7.
44 54E8 00FX518 1 - 2 10 core 3.42 GHz processor module
Note One water-cooled processor module kit must also be ordered when you replace the processor module. For part number information, see table 7.
44 54E4 00FX520 1 - 2 12 core 3.02 GHz processor module
Note One water-cooled processor module kit must also be ordered when you replace the processor module. For part number information, see table 7.
44 54E5 00FX519 1 - 2 8 core 4.15 GHz processor module
Note One water-cooled processor module kit must also be ordered when you replace the processor module. For part number information, see table 7.
45 01AF810 or 01AF849 1 Cold plate assembly
/////////////////////////////////////////////////////////
Table 6. Cables (base and expanded function)Description Part number
6-meter RS232 cable 00FW217
Disk drive backplane power cable (base function) 00FX686
Disk drive backplane power cable (base function or expanded function) 00FV872
Disk drive backplane signal cable 00FV876
Graphics cable 00E3060
Operator panel cable 00E7291
Power distribution board (PDB) signal cable 00FW701
/////////////////////////////////////////////////////////////////////
Table 7. Miscellaneous parts (base and expanded function)Description Part number
Cable configuration See Enclosures and Expansion Units.
External cables and cords See Planning for cables.
Power and UPS cables See Planning for power.
Keyboard parts See Keyboard parts.
Removable media See Managing devices.
Heat sink and thermal interface material (TIM) kit 00FV742
Water-cooled processor module kit (includes tray, TIM, and TIM scraper) 01AF170
Water-cooled manifold assembly 01AF826
