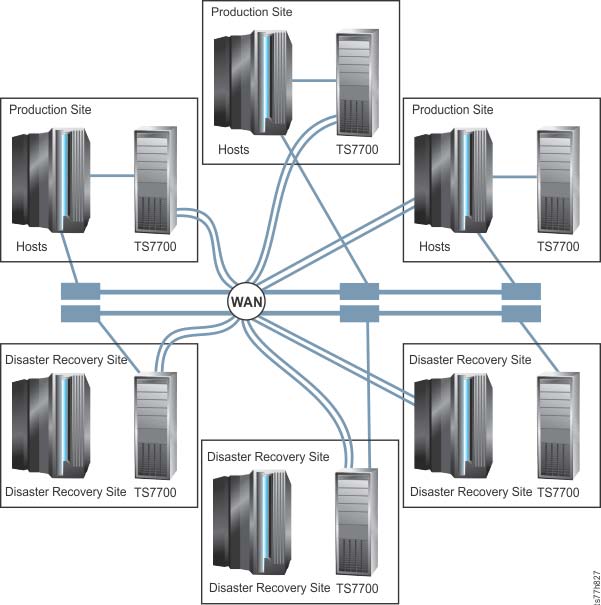

TS7700 configured as a gNode is consists of these major operational components:
A TS7700 Server (includes
System Unit and Expansion Unit with I/O drawers)
A TS7700 Cache Controller
TS7700 Cache Drawers (optional depending on configuration)
A 3948 or 3952 Tape Frame
|
 |
 |
 |
 |
 |

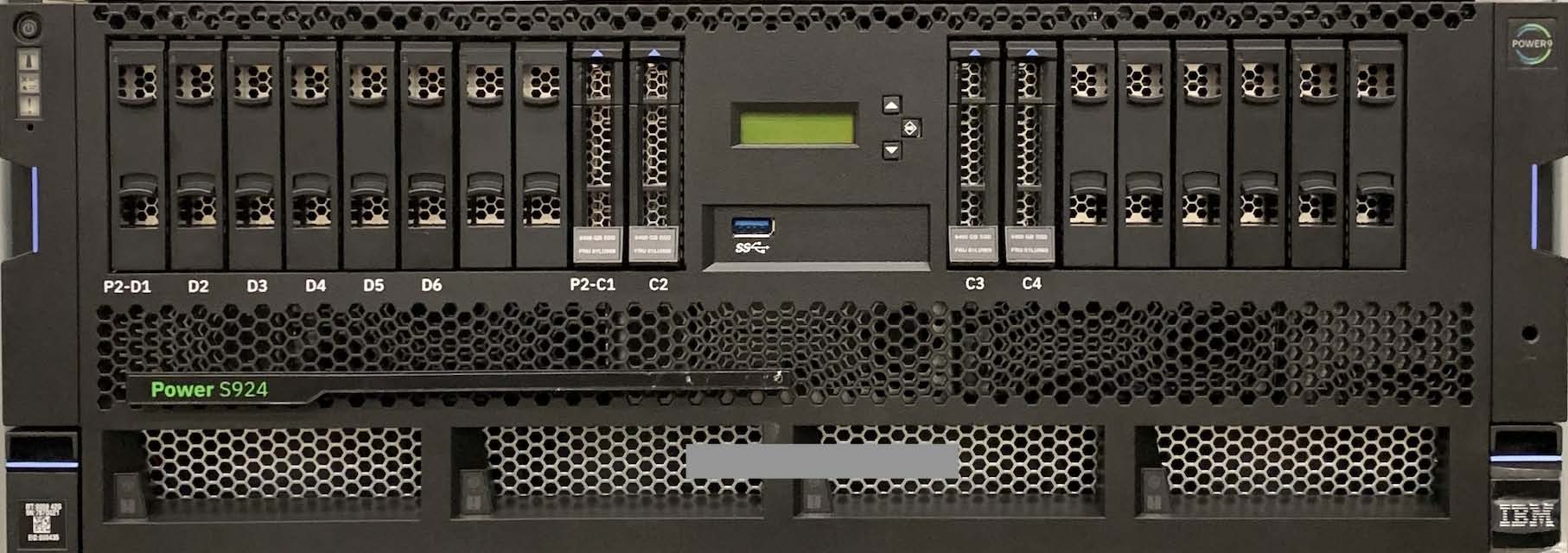

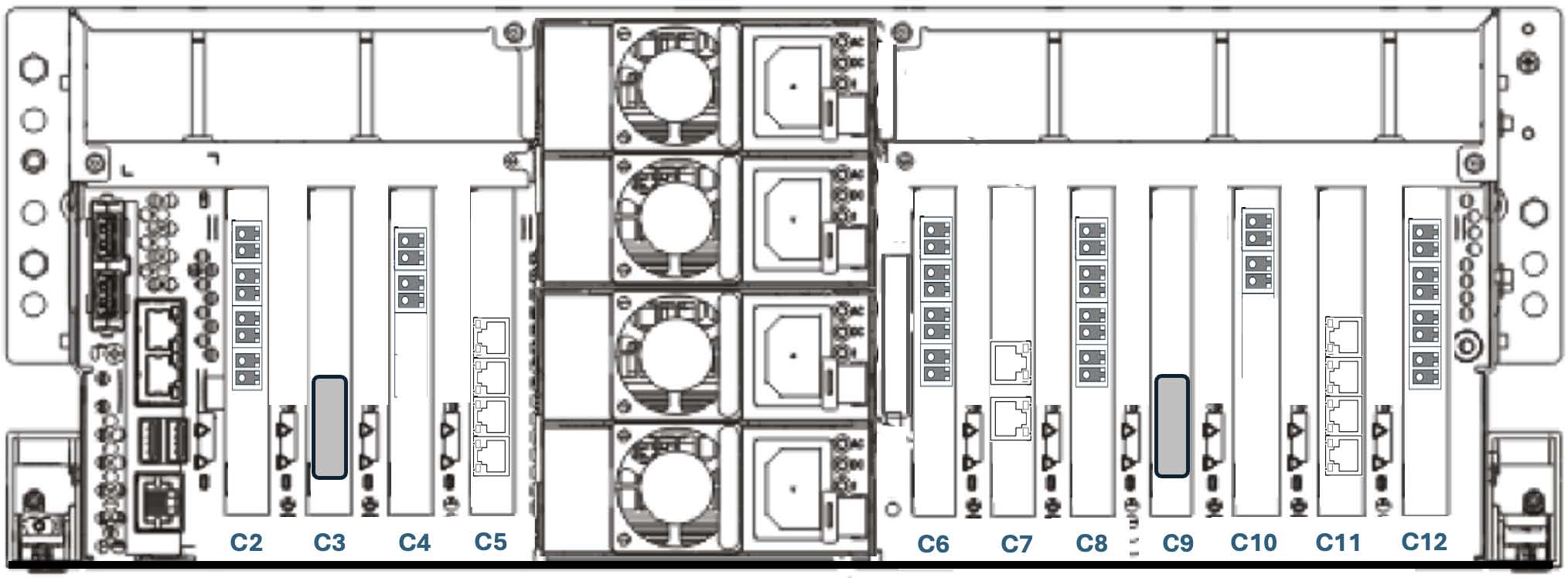

TS7780 Server (3948-VEF) System Unit
|
 |
 |
 |

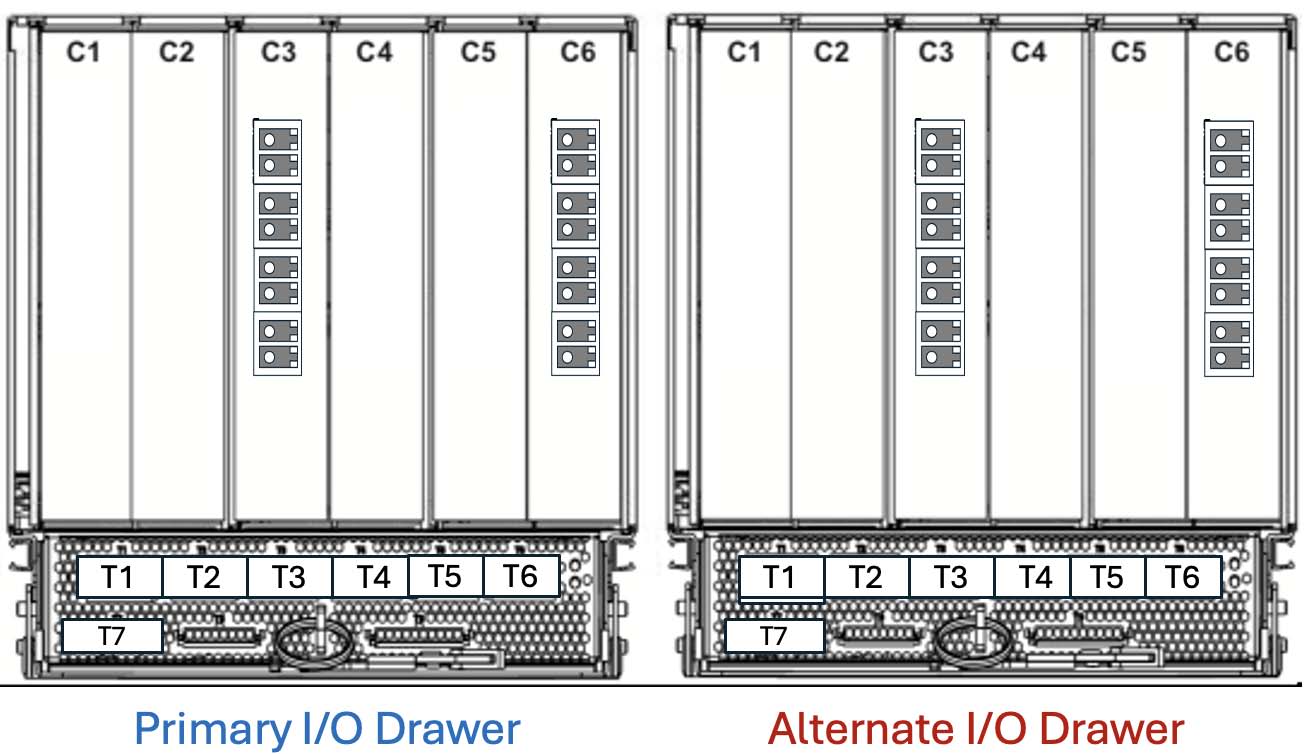

TS7780 Server (1500-001) Expansion Unit I/O drawer (rear view)
Primary I/O Drawer
Alternate I/O Drawer
|
 |
 |
 |
The TS7700 hardware component 3957-VED is the same hardware as a 3948-VED. A TS7700 Server VED
configuration includes:
Two 10-core 3.8 GHz POWER9 processor cards
Six 600GB HDDs or 775GB SSD
64 GB total memory
SAS controller with support for RAID 0,1,5,6 and 10
One system (serial) port with RJ45 connector
Two Hardware Management Console (HMC) ports
Extended Error Handling (EEH) and hot plug support on PCI expansion slots.
Four USB ports:
Two USB 3.0 ports for general use
Two USB 2.0 ports for the FSP service processor
No DVD RAM drive
Two or four Quad-port 1 Gbps copper ethernet adapter
Two quad-port 16Gbps FCS adapter
Each Expansion Unit I/O adapter drawer offers the following features:
Eight additional hot-plugged PCIe cartridge styler slots ( used to house FICON adapters for host
attachment, Fibre Channel adapters for the cache enclosure
attachment and Fibre Channel adapters).
PCIe standard achievable using Kleber riser adapters
PCI-X standard achievable using Oroville riser adapters
Always redundant AC power
Always redundant cooling
Concurrent maintenance of:
PCIe or PCI-X adapters
Two power supplies
Four fans
|
 |
 |
 |

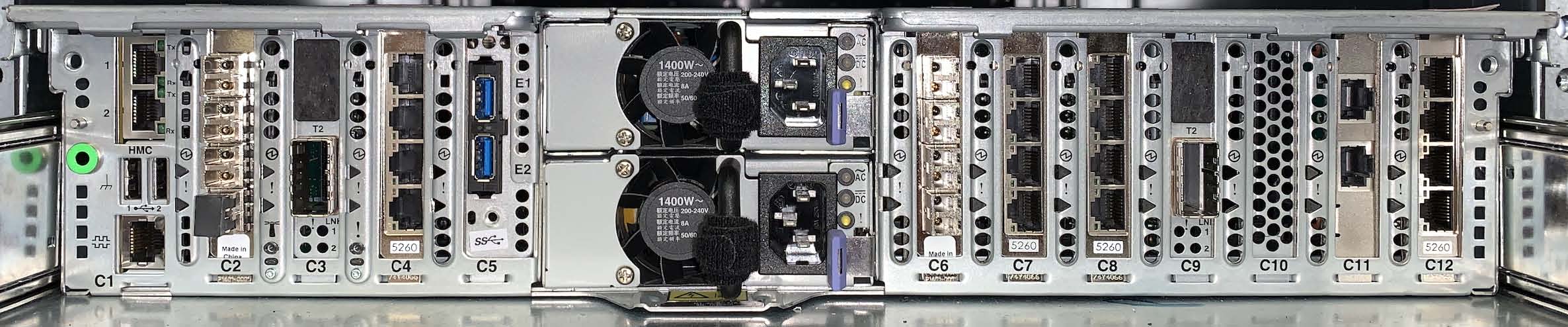

System Unit (TS7700 server ( VED))
adapters
Slot Number Adapter
C2 16 Gb Quad port FC HBA
C3 I/O Drawer Interface card
C4 1Gb Quad port or 10Gb dual port Optical
C6 16 Gb Quad port FC HBA
C7 16Gb Quad port Ethernet adapter
C8 1Gb Quad port or 10Gb dual port Optical
C9 I/O Drawer Interface card
C11 Serial adapter
C12 16Gb Quad port Ethernet adapter
|
 |
 |
 |

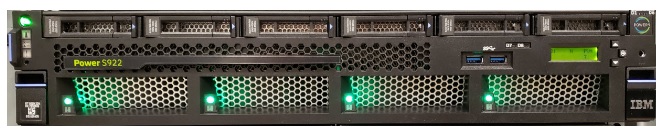

TS7770 Server (VED) System Unit (front view)
|
 |
 |
 |

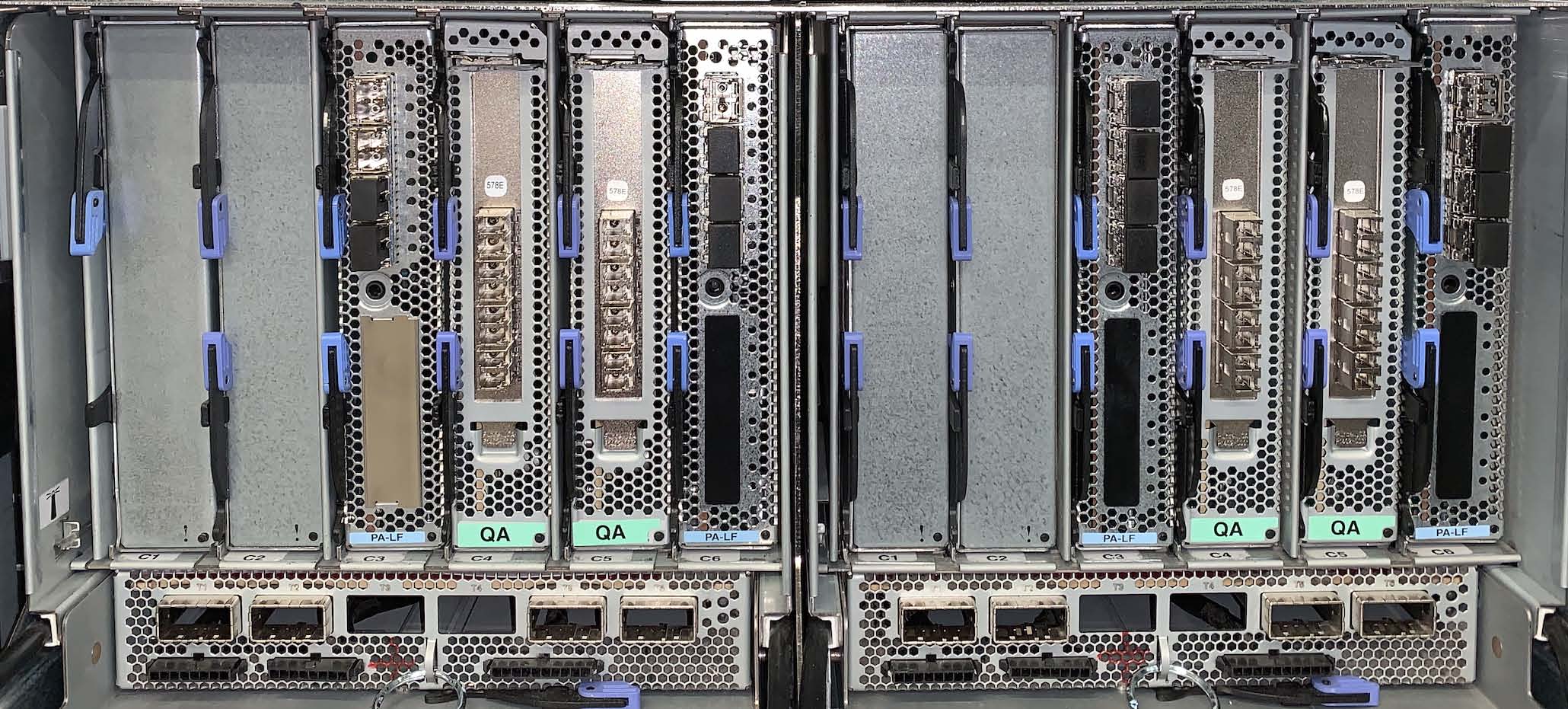

TS7770 Server (VED) Expansion Unit I/O drawer (rear view)
|
 |
 |
 |

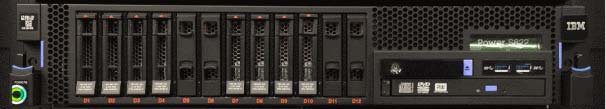

TS7760 Server (3957-VEC) System Unit (front view)
|
 |
 |
 |

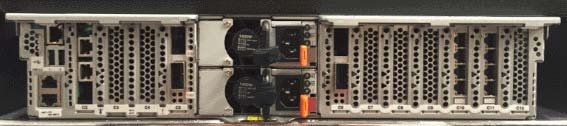

TS7760 Server (3957-VEC) System Unit (rear view)
|
 |
 |
 |

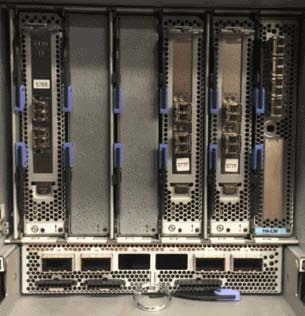

TS7760 Server Expansion Unit I/O drawer (rear view)
Grid PCIe Ethernet adapter:
Dual port 1 Gb copper (FC 1036, 1 Gb grid dual port copper connection), or
Dual port 10 Gb LW optical (FC 1038, 10 Gb Quad Port Grid Optical LW Connection)
FC 3402, 16 Gb SW FICON Adapter and FC 3403, 16 Gb Long
Wavelength FICON Adapter or
FC 3438, 8 Gb FICON Short Wavelength Attachment and FC 3439, 8 Gb FICON Long Wavelength Attachment.
|
 |
 |
 |

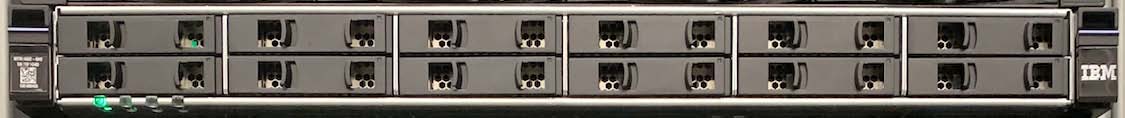

TS7780 Cache Controller (3948-CFD)
|
 |
 |
 |

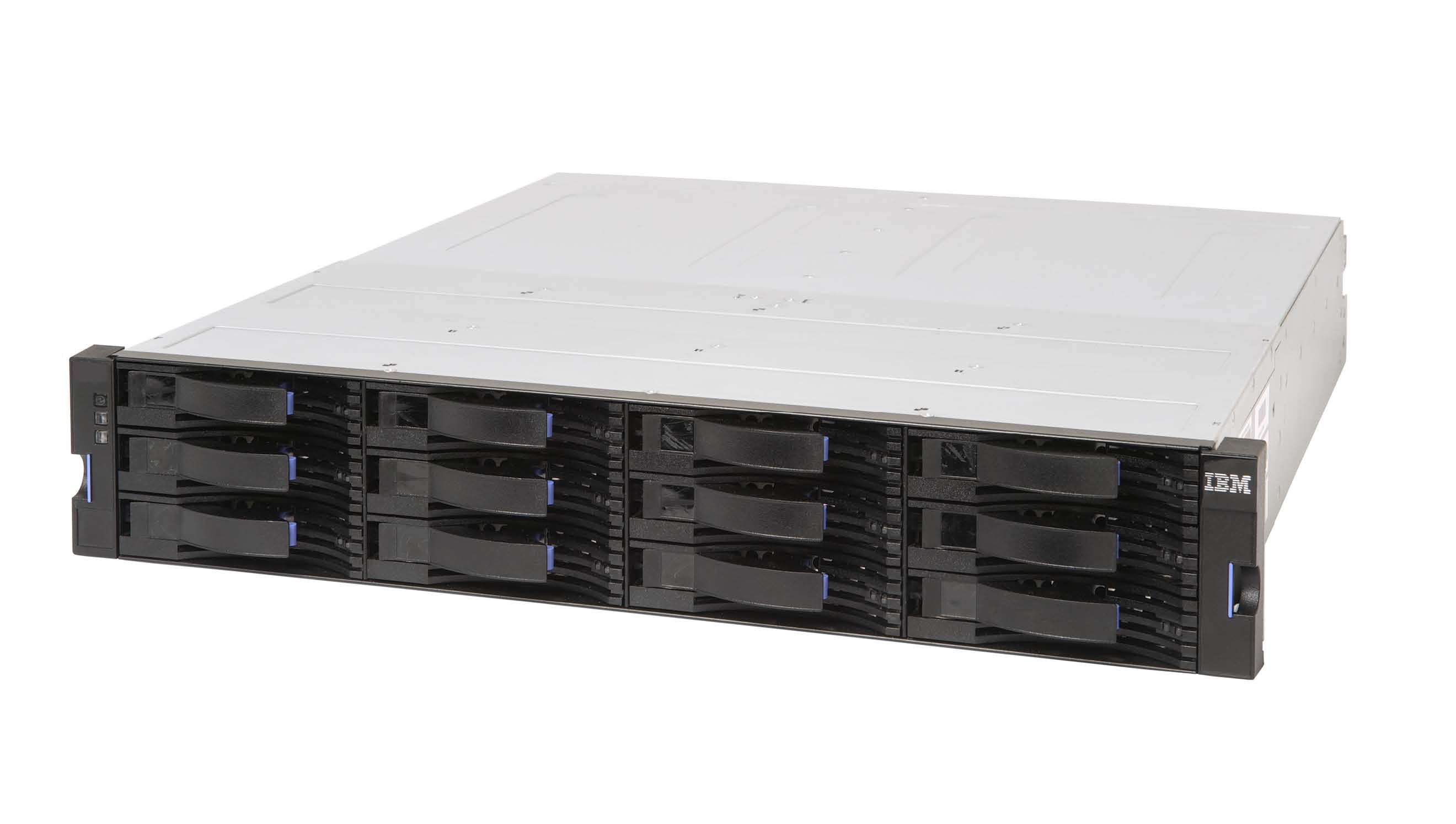

TS7780 Cache Expansion (3948-XSD)
12 large form factor (LFF) SAS drives in
|
 |
 |
 |
TS7780 Cache Expansion (3948-XFD)
The 2U SAS expansion enclosure has two versions with support for either 24 small form factor
(SFF)
|
 |
 |
 |

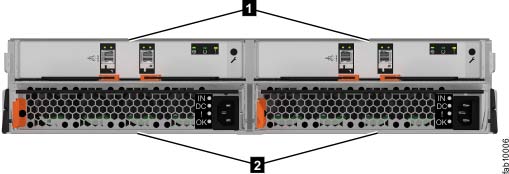

TS7780 Cache Expansion (3948-XFD/XSD) rear view
|
 |
 |
 |
TS7770 with 3948-CFC or 3956-CFC Cache Controller
|
 |
 |
 |

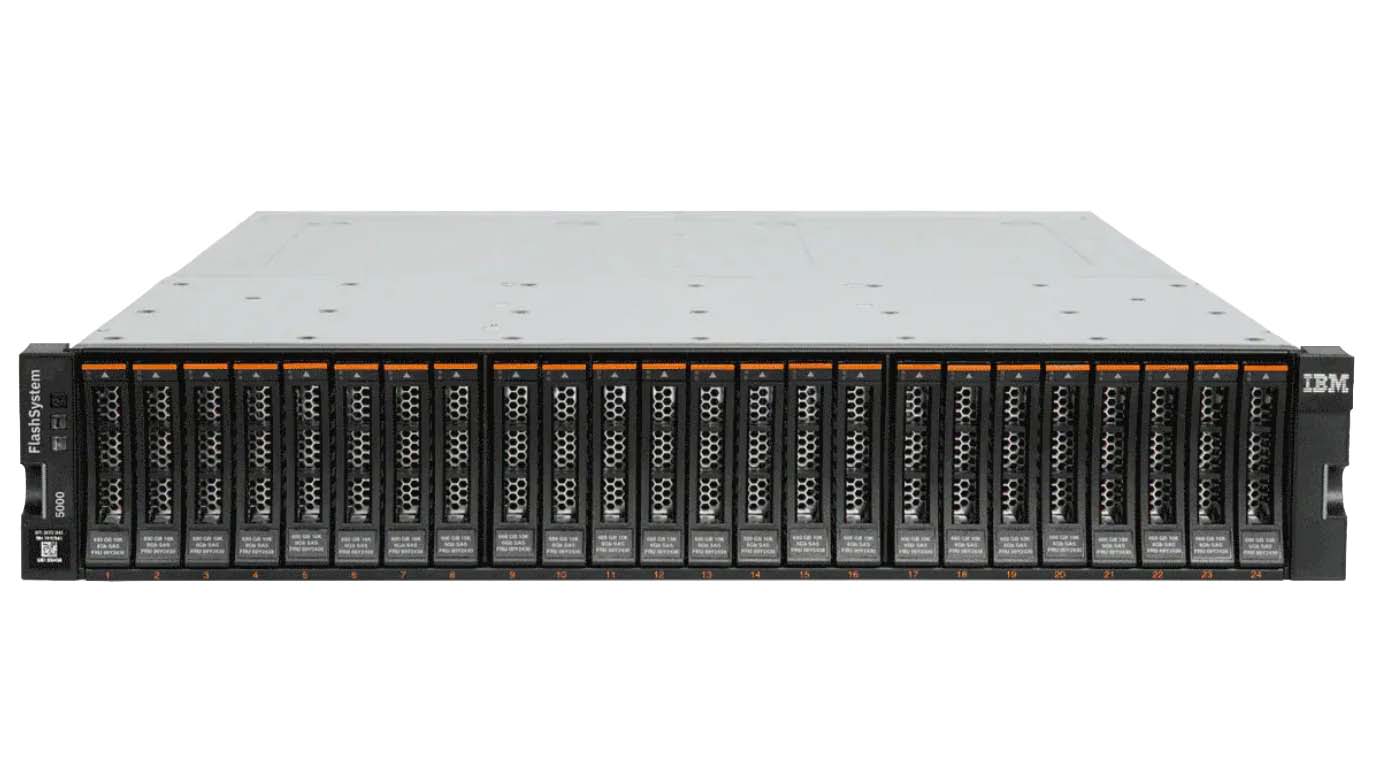

TS7770 with 3948-XFC or 3956-XFC Cache Expansion Enclosure
|

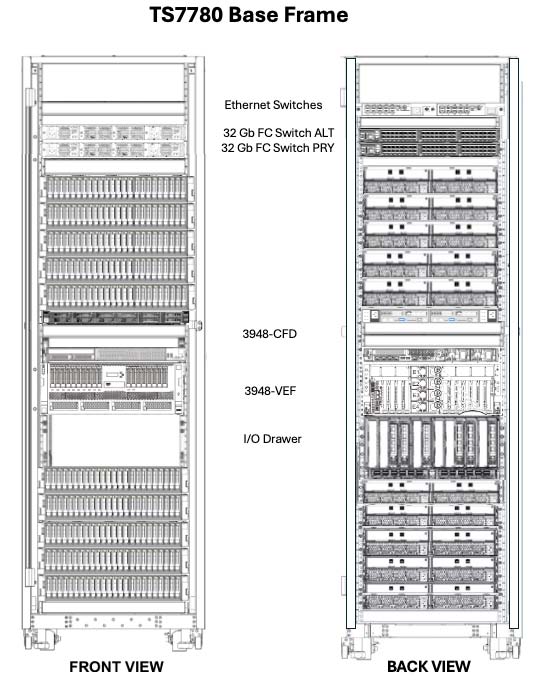

3952 or 3948 Tape Frame details
FRU 12R9307
PN 00VJ478
3952 Tape Frame houses TS7700 controllers and their components. The 3952 Tape Frame that is
used with the TS7700 contains the following components:
Ethernet hub (RCH )
TSSC components
TSSC Server
Keyboard and monitor
TS7700 Server
TS7780 Server (3957-VEF)
TS7770 Server (3957-VED)
TS7770 Server (3948-VED)
I/O drawers
Cache controller
TS7780 Cache Controller ( 3948-CFD)
TS7770 Cache Controller ( 3948-CFC)
TS7770 Cache Controller ( 3956-CFC)
TS7770 Cache Controller (3956-CSB)
Cache expansion drawers
TS7780 Cache Expansion (3948-XFD)
TS7780 Cache Expansion (3948-XSD)
TS7770 Cache Expansion (3948-XFC)
TS7770 Cache Expansion (3956-XFC)
TS7770 Cache Expansion (3956-XSB)
Optional Tape Attach
32Gb FC switches ( two ) will be located in the TS7700 F0x frame.
|
 |
 |
 |
Base frame of TS7700 with 39xx-CFC/XFC
|
 |
 |
 |

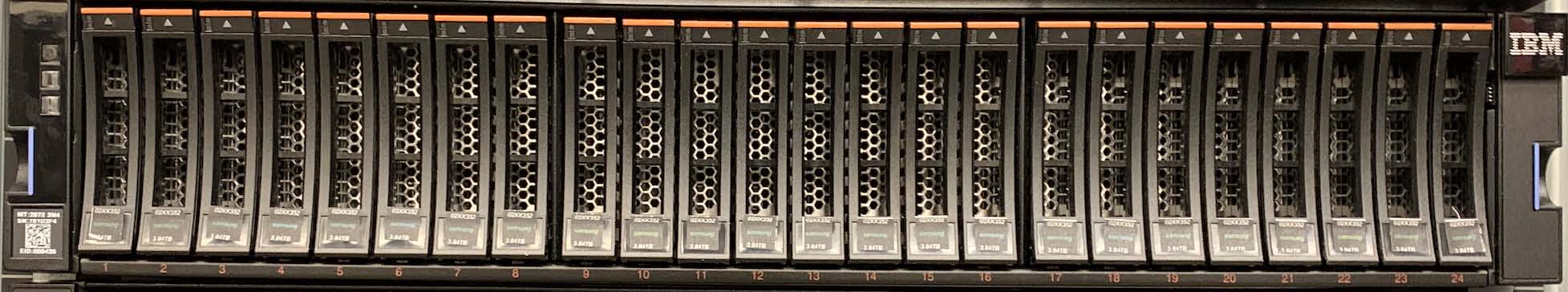

TS7770 Cache Controller 39xx-CFC (front view)
Two node canisters, each with a six-core processor
Two battery backup units (one for each node canister)
Two AC power supplies with embedded enclosure cooling units
24 x 3.84 TB SSD in 2.5" SFF carrier
12 Gb SAS backbone between drawers
Dual active 16 Gb FC connectivity to 39xx-VED processor
Negligible performance impact for encryption.
Internal key management
External ISKLM/TKLM support
Optional attachment to a maximum of one TS7770 Cache Enclosure
64 GB cache (32 GB per canister)
|
 |
 |
 |

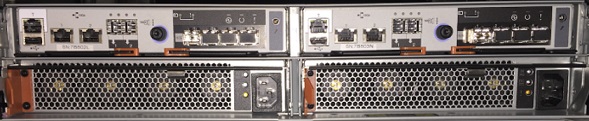

TS7770 Cache Controller 39xx-CFC (rear view)
|
 |
 |
 |

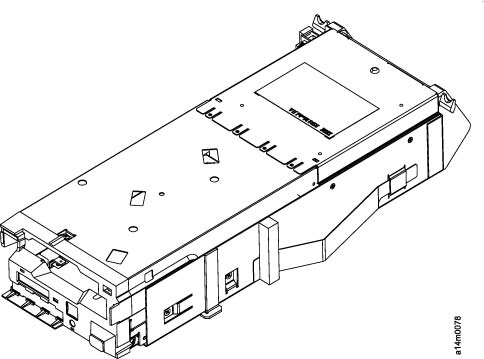

ibm 3592 Tape Drive:
TS1160 Tape Drive (3592 60F or 60G)
TS1150 Tape Drive(3592 E08 or EH8 Tape Drive)
TS1140 Tape Drive(3592 E07 or EH7 Tape Drive)
TS1130 Tape Drive(3592 EU6 or 3592 E06 Tape Drive)
TS1120 Tape Drive(3592 E05 Tape Drive)
3592 J1A
|
Health
The health of the physical drive. This value is obtained automatically
at times determined by the TS7700. Possible values are:
OK
The drive is fully functioning.
WARNING
The drive is functioning but reporting errors. Action should be
taken to correct the errors.
DEGRADED
The drive is functioning but at lesser redundancy and performance.
FAILURE
The drive is not functioning and immediate action should be taken
to correct it.
OFFLINE/TIMEOUT
The drive is out of service or could not be reached within a certain
time frame.
UNKNOWN
The health status is unknown or undetermined
|
