TS4300 tape library：
Drive Support by MTM
The new MTMs also define drive compatibility within TS4300 libraries:
MTM 5544
Base module: 5544-L8A
Expansion modules: 5544-E8A
Supported Drives: LTO-8, LTO-9, LTO-10
MTM 3555
Base modules: 3555-L3A
Expansion modules: 3555-E3A
Supported Drives: LTO-6, LTO-7, LTO-8, LTO-9
Important: MTM 3555 will not support LTO-10 or later generations. Expansion module (3555-E3A) cannot be converted for migration to a 5544 library.
|
|
 |
|
Drive information and performance specification for full-height drives
LTO™ 10 ULT3580-TDA ULTRIUM-TDA
LTO 9 ULT3580-TD9 ULTRIUM-TD9
LTO 8 ULT3580-TD8 ULTRIUM-TD8
LTO 7 ULT3580-TD7 ULTRIUM-TD7
LTO 6 ULT3580-TD6 ULTRIUM-TD6
|
|
 |
|
Drive information and performance specification for half-height drives
LTO 9 ULT3580-HH9 ULTRIUM-HH9
LTO 8 ULT3580-HH8 ULTRIUM-HH8
LTO 7 ULT3580-HH7 ULTRIUM-HH7
LTO 6 ULT3580-HH6 ULTRIUM-HH6
|
|
 |

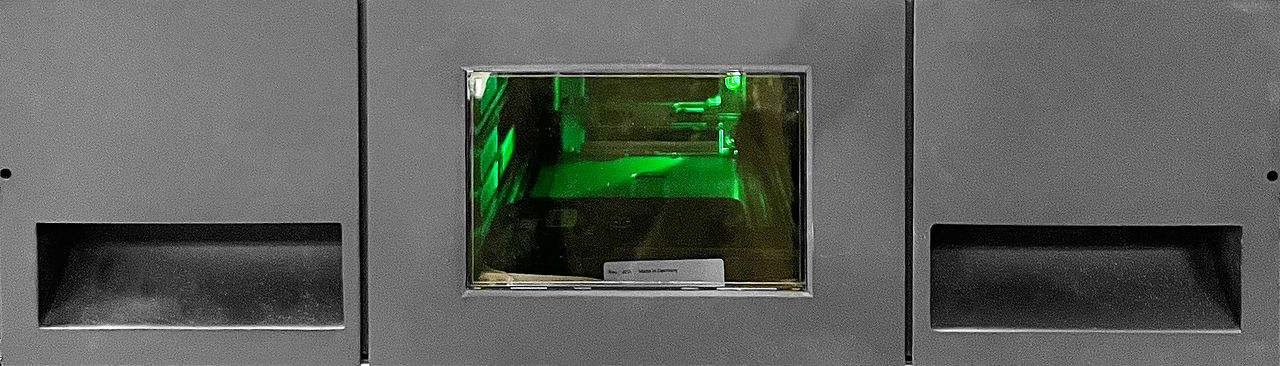

IBM TS4300 Tape Library
port0 yellow
port1 yellow
5 yellow
|
|
 |

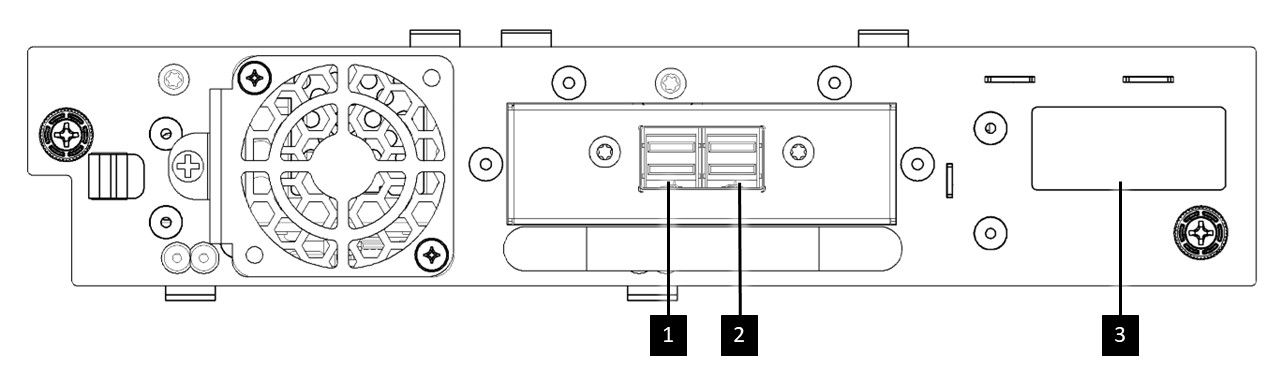

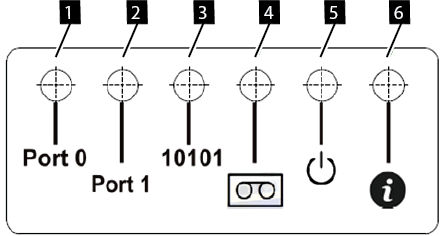

ibm TS4300 drive Half-height SAS dual port LTO9HHSAS
|
|
 |

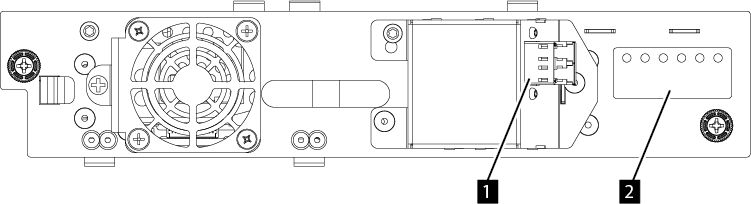

ibm TS4300 drive Half-height FC single port
|
|
 |

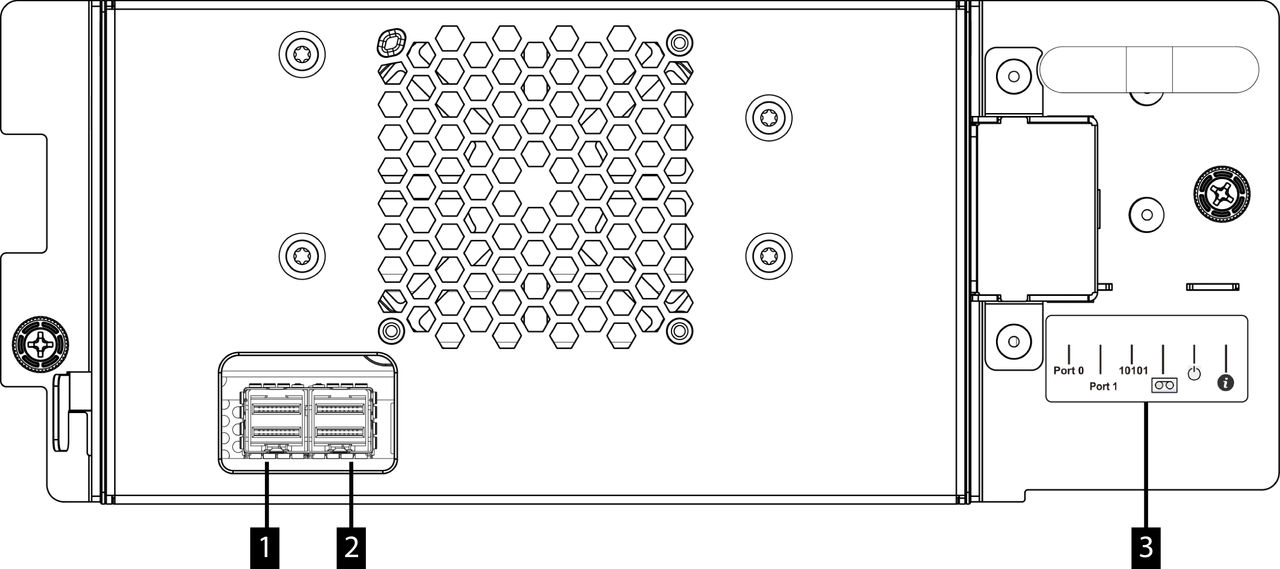

IBM TS4300 Full-height SAS dual port - LTO-10
|
|
 |

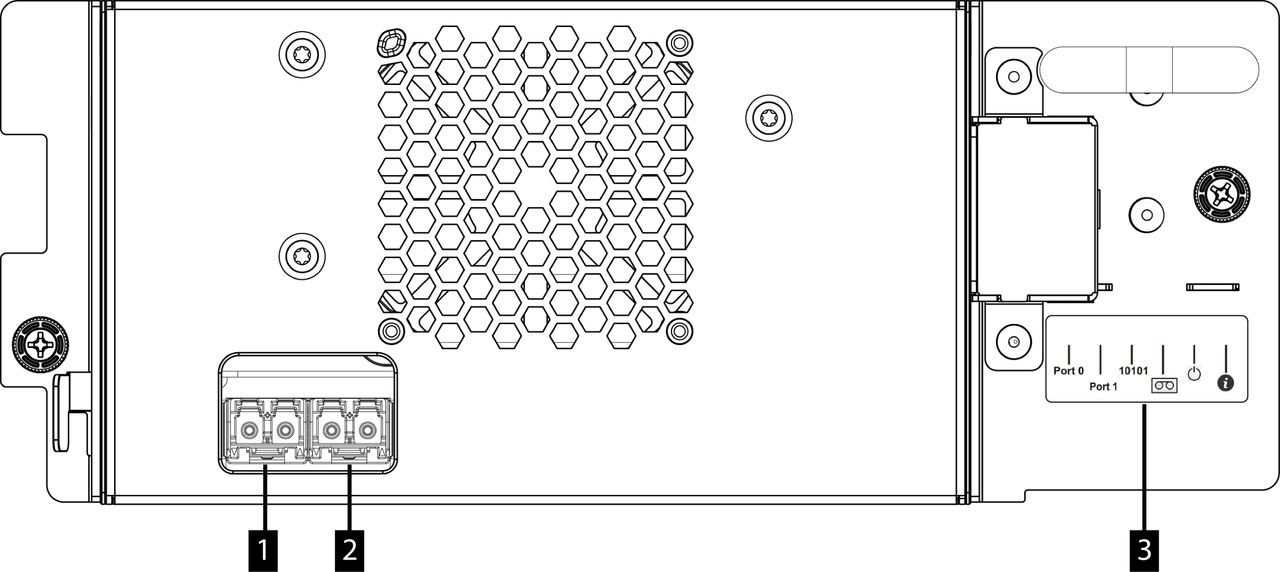

IBM TS4300 Full-height FC dual port LTO-10
|
|
 |

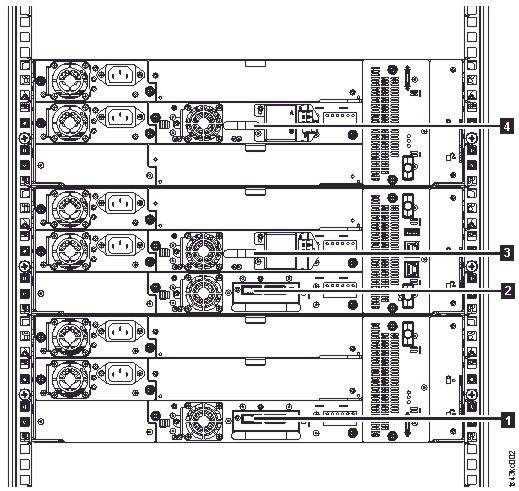

IBM TS4300 Physical and logical addresses of drives
|
|
 |
IBM TS4300 Operator Panel screens
|
|
 |
IBM TS4300

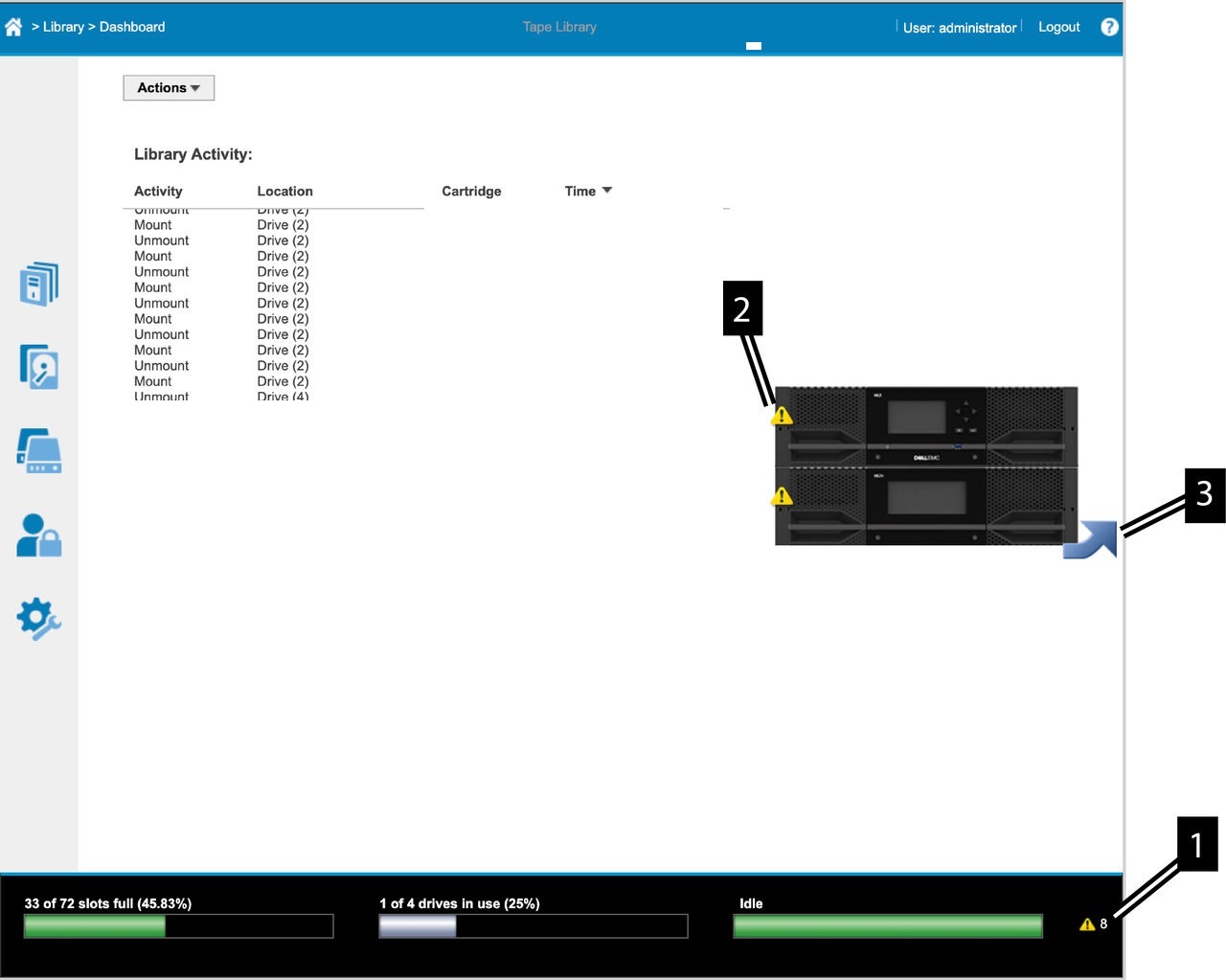

The lower-right status pod on the library GUI shows the library fault status
IBM TS4300 Drive0 Error LED, Yellow
IBM TS4300 Drive1 Error LED, Yellow
IBM TS4300 Drive2 Error LED, Yellow
|
|
 |
IBM TS4300

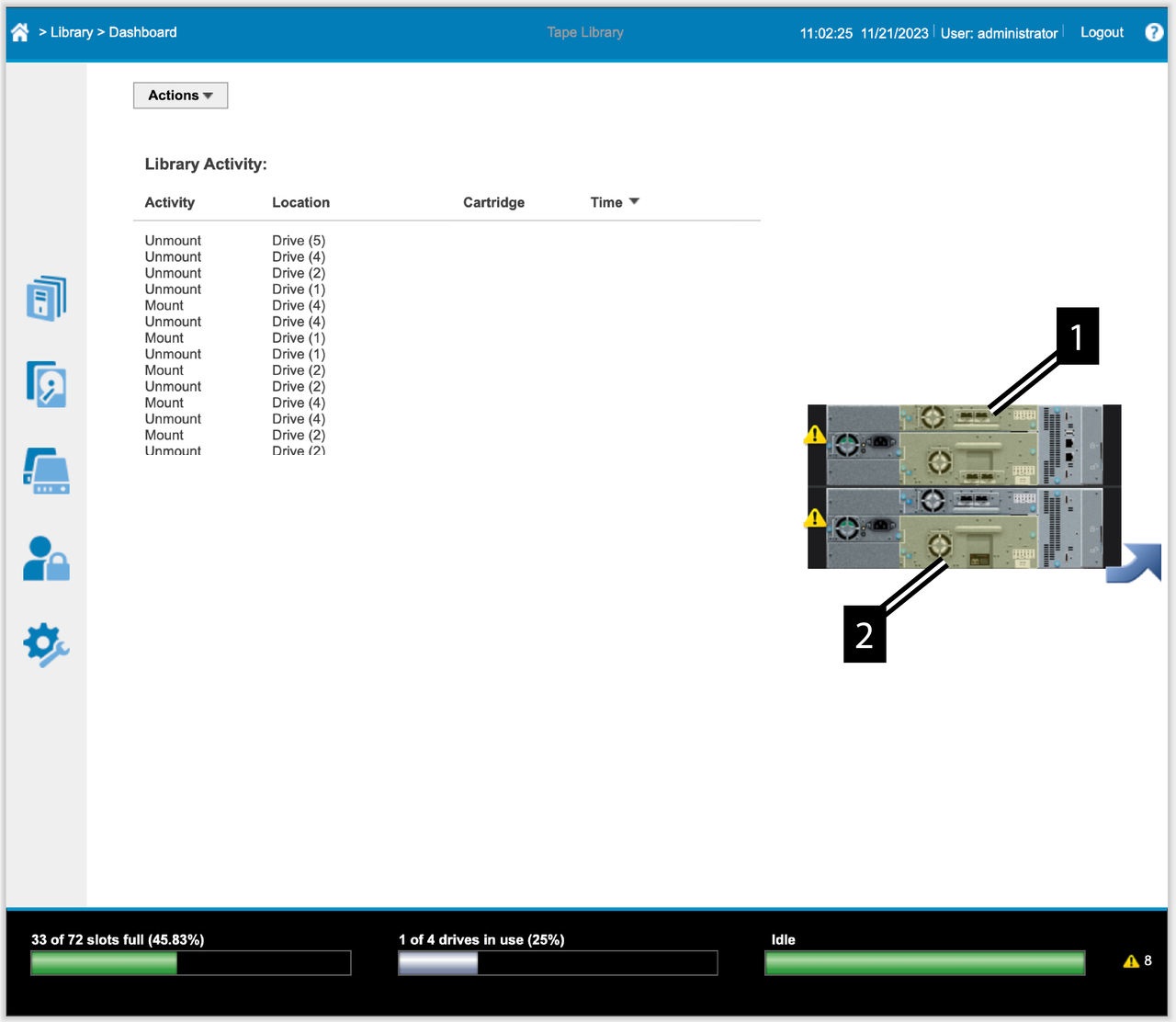

GUI screen showing rear panels
drive yellow
|
|
 |

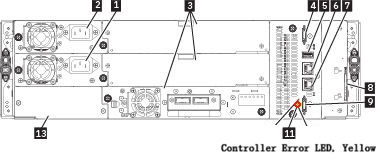

IBM TS4300 Controller Error LED, Yellow
IBM TS4300 Power supply 1 Error LED, Yellow
IBM TS4300 Power supply 2 Error LED, Yellow
|
|
TS4300 tape library
Table 1. Replacement parts
Part Number
Description
03UW438
5544 Base Chassis - Includes operator panel, accessor, spooling mechanism
03UW444
5544 Expansion Chassis
02XY033 3555 Base Chassis, 48U - Includes operator panel, accessor, spooling mechanism
02XV566 3555 Expansion Chassis
02XY977 Accessor, 48U - Includes Spooling Mechanism
02XY978 Spooling Mechanism, 48U
02XY976 Base Controller, 48U
00VJ962 Expansion Controller
00GH772 Expansion Cable
00GH763 LTO6 FH FC Drive Assembly
00GH761 LTO6 HH FC Drive Assembly
00GH759 LTO6 HH SAS Drive Assembly
00GH768 LTO7 FH FC Drive Assembly
00GH766 LTO7 HH FC Drive Assembly
00GH764 LTO7 HH SAS Drive Assembly
00GH814 LTO8 FH FC Drive Assembly
00GH812 LTO8 HH FC Drive Assembly
00GH810 LTO8 HH SAS Drive Assembly
02XX411 LTO9 HH SAS Drive Assembly
02XX413 LTO9 HH FC Drive Assembly
02XX415 LTO9 FH SAS Drive Assembly
02XX417 LTO9 FH FC Drive Assembly
03UW740 LTO10 FH FC Drive Assembly
00GH724 Left Magazine Asm
00GH726 Right Magazine Asm
00VJ940 Power supply
12R9314 Fibre Channel Wrap Tool
95P6566 SAS Wrap Tool
00VJ139 2 M Mini-SAS/Mini-SAS 1x Cable
15R8848 Fiber Cable HBW LC/LC 25 M
41V2120 Fiber Cable HBW LC/LC 10 M
46C2900 4 M AE1 MINI-SAS TO MINI-SAS
46C2902 3 M Y MINI-SAS HD TO MINI-SAS
46X9904 SAS 1X to 4X INTERPOSER
39M5068 Power Cable 10 AMP / 250 VAC - 2.8M
39M5081 Power Cable 10 AMP / 125 VAC - 2.8M
39M5095 Power Cable 10 AMP / 250 VAC - 2.8M
39M5102 Power Cable 10 AMP / 250 VAC - 2.8M
39M5123 Power Cable 10 AMP / 250 VAC - 2.8M
39M5130 Power Cable 10 AMP / 250 VAC - 2.8M
39M5144 Power Cable 10 AMP / 250 VAC - 2.8M
39M5151 Power Cable 10 AMP / 250 VAC - 2.8M
39M5158 Power Cable 10 AMP / 250 VAC - 2.8M
39M5165 Power Cable 10 AMP / 250 VAC - 2.8M
39M5172 Power Cable 10 AMP / 250 VAC - 2.8M
39M5199 Power Cable 10 AMP / 250 VAC - 2.8M
39M5206 Power Cable 10 AMP / 250 VAC - 2.8M
39M5219 Power Cable 10 AMP / 250 VAC - 2.8M
39M5226 Power Cable 10 AMP / 250 VAC - 2.8M
39M5240 Power Cable 10 AMP / 250 VAC - 2.8M
39M5247 Power Cable 10 AMP / 250 VAC - 2.8M
39M5254 Power Cable 10 AMP / 250 VAC - 2.8M
39M5378 Power Cable 10 AMP / 250 VAC - 4.3M
|
|
TS4300 tape library
Table 2. MTM 3555 21U only replacement parts
Part Number
Description
00VJ943 3555 Base Chassis, 32 slot - Includes operator panel, accessor, spooling mechanism
02JE7201 3555 Base Chassis, 40 slot - Includes operator panel, accessor, spooling mechanism
00VJ955 3555 Accessor, 32 slot - Includes Spooling Mechanism
02JE7222 3555 Accessor, 40 slot - Includes Spooling Mechanism
00VJ956 3555 Spooling Mechanism
02XV7633 3555 Base Controller, 32 slot
|
|
