Table 1. Management console feature codes
Feature Code Description Comments
1120 Management Console - laptop internal To be installed in an internal IBM® rack. (Model 961
1130 Management Console - laptop external To be installed in an external IBM or a non-IBM rack. (Model 961).
able 1. Management console external power cord feature codes
Feature Code Description (V = volts, A = amperes) Country or region
1170 MC power cord standard rack All
1171 MC power cord group 1 United States, Canada, Bahamas, Barbados, Bermuda, Bolivia, Brazil, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Guyana, Honduras, Jamaica, Japan, Japan (PDS), Mexico, Netherlands Antilles, Panama, Philippines, Saudi Arabia, Suriname, Taiwan, Trinidad, Venezuela
1172 MC power cord group 2 (250 V, 15 A) Brazil
Use the Ethernet cable feature code to specify a cable when you are connecting a management console to a second storage unit (Models 9A2, 9B2, 921, 922, 931, or 932).
Table 1 describes the Ethernet cable feature code.
Table 1. Management console Ethernet cable feature code
Feature Code Description DS8000 Models
1199 HMC Ethernet cable pair 9A2, 9B2, 921, 922, 931, or 932
Table 1. Disk enclosure feature code
Feature Code Description Models
-->联系-->霍工-->13301272832(微信同号)
1241 Disk enclosure pair
Note The disk enclosure feature contains two disk enclosure filler features in the disk enclosure. The enclosure pair supports the installation of one to three disk features.
961 and 96E
1242 HD STD enclosure indicator
1244 3.5" disk drive enclosure indicator
1245 HD SSD enclosure indicator for 400 GB disk drives

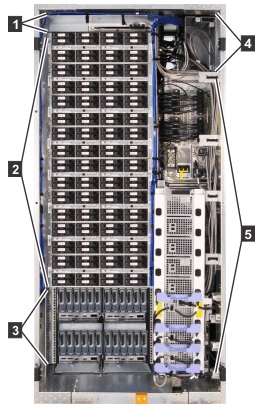

quantum scalar i6000 front ibm DS8100 DS8300 DS8700 DS8880 DS8870 FRU PN all 技术服务 --> 欢迎来电咨询价格-->联系-->霍工-->手机:13301272832(微信同号)
Use the disk enclosure filler feature code to order filler sets for the disk enclosure when you have one or two regular or standby CoD features in the enclosure.
A disk enclosure filler set includes 16 fillers (8 fillers for 3.5" disk enclosure filler set). The following feature codes can be used on all models.
2997 3.5" Disk enclosure filler set
2998 Disk enclosure half-filler set
2999 Disk enclosure filler set
Table 1. Disk drive cable feature codes
Feature Code Disk Drive Cable Group Connection Type
1246 Disk drive cable group 1 - standard Connects the disk drives to the device adapters within the same base Model 961.
1248 Disk drive cable group 4 - standard Connects the disk drives from a second expansion Model 96E to the base Model 961 and first expansion Model 96E.
1249 Disk drive cable group 5 - standard Connects the disk drives from a third expansion Model 96E to the base Model 961 and second expansion Model 96E.
For Model 961, use I/O enclosure feature code 1301 to order one I/O enclosure pair.
Table 1. PCIe cable feature codes
Feature Code Cable Group Description Models
1320 PCIe cable group 1 Connects device/host adapters in an I/O enclosure pair to the processor. 961
1321 PCIe cable group 2 Connects device/host adapters in I/O enclosure pairs to the processor. 961
1322 PCIe cable group 3 Connects device/host adapters in an I/O enclosure pair to the processor. 96E
Table 1. Device adapter feature codes
Feature code Device adapter types Models
3053 Device adapter pair I 961 and 96E
Table 1. Fibre Channel host adapters feature codes
Feature Code Description Model Protocols Link Speed Receptacle Type
3153 Shortwave host adapter PCIe, 4-port 961, 96E FCP and FICON 8 Gbps LC
3157 Shortwave host adapter PCIe, 8-port FCP and FICON 8 Gbps LC
3253 Longwave host adapter PCIe, 4-port FCP and FICON 8 Gbps LC
3257 Longwave host adapter PCIe, 8-port FCP and FICON 8 Gbps LC
Table 1. Fibre Channel cable feature codesFeature Code Cable Type Connector Types Length Compatible Fibre Channel Host Adapter Features
First End Second End
1410 50 micron Fibre Channel cable, multimode LC connector LC connector 40 m (131 ft)
Short wave Fibre Channel/ FICON host adapters (feature 3153 and 3157)
Long wave Fibre Channel/ FICON adapters (feature 3253 or 3257).
1411 50 micron Fibre Channel cable, multimode LC connector SC connector 31 m(102 ft)
-->联系-->霍工-->13301272832(微信同号)
1412 50 micron Fibre Channel conversion cable, multimode LC connector SC receptacle 2 m(6.5 ft)
1420 9 micron Fibre Channel cable, single mode LC connector LC connector 31 m(102 ft)
Long wave Fibre Channel/ FICON adapters (feature 3253 or 3257).
1421 9 micron Fibre Channel cable, single mode LC connector SC connector 31 m(102 ft)
1422 9 micron Fibre Channel conversion cable, single mode LC connector SC receptacle 2 m(6.5 ft)
Table 1. Processor memory1 feature codes
Feature Code Description Models
43112 16 GB processor memory 961 Business Class (2-core)
43122 32 GB processor memory 961 Business Class (2-core)
43133 64 GB processor memory 961 (4-core)
43144 128 GB processor memory 961 (8-core)
43154 256 GB processor memory 961 (8-core)
43165 512 GB processor memory 961 (16-core)
43175 1 TB processor memory 961 (16-core)
Notes
Memory is not the same as cache. The amount of cache is less than the amount of available memory.
Feature codes 4311 and 4312 require feature code 4401.
Feature code 4313 requires feature code 4402.
Feature codes 4314 and 4315 require feature code 4403.
Feature codes 4316 and 4317 require feature code 4404.
Table 1. Power cord feature codes for the DS8870
Feature Code Power Cord Type Wire Gauge
1061 Single-phase power cord, 200-240V, 60A, 3-pin connector 10 mm² (6awg)
1068 Single-phase power cord, 200-240V, 63A, no connector 10 mm² (6awg)
1072 Top exit single-phase power cord, 200-240V, 60A, 3-pin connector 10 mm² (6awg)
1073 Top exit single-phase power cord, 200-240V, 63A, no connector 10 mm² (6awg)
1080 Three-phase power cord, high voltage (five-wire 3P+N+G) 380-415V (nominal), 30A, IEC 60309, 5-pin customer connector (available in North America) 6 mm² (10awg)
1081 Three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided 6 mm² (10awg)
1082 Three-phase power cord, low voltage, 200V-240V, 60A, 4-pin connector 10 mm² (6awg)
1083 Three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided 6 mm² (10awg)
1084 Three-phase low voltage (four-wire 3P+G), 200-240V, 60A, IEC 60309 4-pin customer connector 10 mm² (6awg)
1085 Three-phase high voltage (five-wire 3P+N+G), 380-415V, 30A (nominal), IEC 60309 5-pin customer connector (available in North America) 6 mm² (10awg)
1095 Top exit power cord for U.S., Canada, Latin America, and Asia Pacific (available for only Models 951 and 95E) 10 mm² (6awg)
1096 Top exit power cord for Africa (available for only Models 951 and 95E) 6 mm² (10awg)
1097 Top exit power cord for U.S., Canada, and Japan (available for only Models 951 and 95E) 10 mm² (6awg)
Table 2. Additional feature codes for top exit power cords
Feature Code Installation Item
1101 Universal ladder for top exit cable access
Note For storage units with top exit power cords (feature codes 1072, 1073, 1083, 1084) a minimum of one IBM safety-approved ladder (feature code 1101) must be ordered per customer site. This ladder is a requirement for storage unit installation.
Use battery assembly feature codes to plan for and order battery assemblies for your base or expansion model.
The following feature codes applies to all models.
1051 Battery assembly
If the ePLD option is ordered, two battery assembly sets per rack are needed (for both the main and expansion racks). For the ePLD feature code, see Feature code for extended power line disturbance.
Use extended power line disturbance feature codes when you plan for and order the extended power line disturbance features for your storage unit.
You can order this feature with the following feature code:
1055 Extended power line disturbance (all models
If the ePLD option is ordered, two battery assembly sets per rack are needed (for both the main and expansion racks). For the battery assembly feature code, see Feature codes for battery assemblies.
Note If no ePLD option is ordered, one BSM set per rack (for both the main and expansion racks) is needed.
Use the zSeries feature code when you plan for and order the remote zSeries® power control feature for your storage unit.
1000 Remote zSeries power control
Use the Earthquake Resistance Kit feature code when you plan for and order an Earthquake Resistance Kit option for your DS8000.
1906 Earthquake Resistance Kit (all models)
Use the BSMI certificate feature code when you plan for and order the BSMI certificate options for a DS8000® model.
0400 This feature provides the BSMI certification documents that are required when the DS8000 model is shipped to Taiwan.
Use the shipping weight reduction feature code when you plan for and order the shipping weight reduction option for your DS8000® model.
0200 This feature ensures that the maximum shipping weight of any DS8000 base model or expansion model does not exceed 909 kg (2000 lb) each. Packaging adds 120 kg (265 lb).
Table 1. Operating environment license feature codesFeature code Description
7030 OEL - inactive
7031 OEL - 1 TB unit
7032 OEL - 5 TB unit
7033 OEL - 10 TB unit
7034 OEL - 25 TB unit
7035 OEL - 50 TB unit
7040 OEL - 100 TB unit
7045 OEL - 200 TB unit
7050 OEL - inactive
7051 OEL - 1 unit
7052 OEL - 5 unit
7053 OEL - 10 unit
7054 OEL - 25 unit
-->联系-->霍工-->13301272832(微信同号)
7055 OEL - 50 unit
7060 OEL - 100 unit
7065 OEL - 200 unit
7071 Thin Provisioning Indicator
7080 DB Protection Indicator
7083 Easy Tier Indicator
7084 Easy Tier Server Indicator
7091 FICON Indicator
7092 High Performance FICON Indicator
7094 z/OS Distributed Data Backup Indicator
Table 1. Point-in-time copy (PTC) feature codesFeature code Description Hardware models
7250 PTC - Inactive 961
7251 PTC - 1 TB unit
7252 PTC - 5 TB unit
7253 PTC - 10 TB unit
7254 PTC - 25 TB unit
7255 PTC - 50 TB unit
7260 PTC - 100 TB unit
Table 1. FlashCopy SE feature codesFeature code Description Hardware models
7350 SE - Inactive 961
7351 SE - 1 TB unit
7352 SE - 5 TB unit
7353 SE - 10 TB unit
7354 SE - 25 TB unit
7355 SE - 50 TB unit
7360 SE - 100 TB unit
Table 1. Remote mirror and copy (RMC) feature codesFeature code Description Hardware models
7480 MGM - inactive 961
7481 MGM - 1 TB unit
7482 MGM - 5 TB unit
7483 MGM - 10 TB unit
7484 MGM - 25 TB unit
7485 MGM - 50 TB unit
7490 MGM - 100 TB unit
7500 MM - Inactive
7501 MM - 1 TB unit
7502 MM - 5 TB unit
7503 MM - 10 TB unit
7504 MM - 25 TB unit
7505 MM - 50 TB unit
7510 MM - 100 TB unit
7520 GM - Inactive
7521 GM - 1 TB unit
7522 GM - 5 TB unit
7523 GM - 10 TB unit
7524 GM - 25 TB unit
7525 GM - 50 TB unit
7530 GM - 100 TB unit
-->联系-->霍工-->13301272832(微信同号)
7650 RMZ - Inactive 961
7651 RMZ - 1 TB
7652 RMZ - 5 TB
7653 RMZ - 10 TB
7654 RMZ - 25 TB
7655 RMZ - 50 TB
7660 RMZ - 100 TB
Table 1. I/O Priority Manager feature codesFeature code Description Hardware models
7840 I/O Priority Manager - Inactive 961
7841 I/O Priority Manager - 1 TB Indicator
7842 I/O Priority Manager - 5 TB Indicator
7843 I/O Priority Manager - 10 TB Indicator
7844 I/O Priority Manager - 25 TB Indicator
7845 I/O Priority Manager - 50 TB Indicator
7850 I/O Priority Manager - 100 TB Indicator
Table 1. Remote mirror for System z (RMZ) feature codesFeature code Description Hardware models
7650 RMZ - Inactive 961
7651 RMZ - 1 TB unit
7652 RMZ - 5 TB unit
7653 RMZ - 10 TB unit
7654 RMZ - 25 TB unit
7655 RMZ - 50 TB unit
7660 RMZ - 100 TB unit
Table 1. z/OS Metro/Global Mirror Incremental Resync (RMZ Resync) for System z feature codesFeature code Description Hardware models
7680 RMZ resync - Inactive 961
7681 RMZ resync - 1 TB unit
7682 RMZ resync - 5 TB unit
7683 RMZ resync - 10 TB unit
7684 RMZ resync - 25 TB unit
7685 RMZ resync - 50 TB unit
7690 RMZ resync - 100 TB uni
Table 1. Parallel access volume (PAV) feature codesFeature code Description Hardware models
7820 PAV - Inactive 961
7821 PAV - 1 TB unit
7822 PAV - 5 TB unit
7823 PAV - 10 TB unit
7824 PAV - 25 TB unit
7825 PAV - 50 TB unit
7830 PAV - 100 TB unit
7899 HyperPAV
Use the IBM HyperPAV feature code when you add the IBM HyperPAV function to an existing or new parallel access volumes (PAV) function on a storage unit.
7899 IBM HyperPAV (all hardware models)
able 1. License function indicators for the Thin Provisioning feature
License function Hardware machine type 239x indicator feature Hardware machine type 242x indicator feature
Thin Provisioning Indicator 7071 0707
Table 1. DS8870 power cordsPower Cord Feature Code Power Cord Description Inline Connector Receptacle
1061 (See notes 1, 2, 3, 4, 5) Single-phase power cord, 200V-240V, 60A, 3-pin connector HBL360C6W, Pin and Sleeve Connector, IEC 309, 2P3W HBL360R6W, AC Receptacle, IEC 60309, 2P3W
1068 (See notes 2, 3, 4) Single-phase power cord, 200V-240V, 63A, no connector Not applicable Not applicable
1072 (See notes 1, 2, 3, 4, 5) Top exit single-phase power cord, 200V-240V, 60A, 3-pin connector HBL360C6W, Pin and Sleeve Connector, IEC 309, 2P3W HBL360R6W, AC Receptacle, IEC 60309, 2P3W
1073 (See notes 2, 3, 4) Top exit single-phase power cord, 200V-240V, 63A, no connector Not applicable Not applicable
1080 (See notes 1, 2, 3, 4, 5, 6) Three-phase power cord, high voltage (five-wire 3P+N+G) 380-440V (nominal), 30A, IEC 60309, 5-pin customer connector HBL530C6W, Pin and Sleeve Connector, IEC 309, 4P5W HBL530R6W, AC Receptacle, IEC 60309, 4P5W
1081 (See notes 2, 3, 4) Three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided Not applicable Not applicable
-->联系-->霍工-->13301272832(微信同号)
1082 (See notes 1, 2, 3, 4, 5) Three-phase power cord, low voltage, 200V-240V, 60A, 4-pin connector HBL460C9W, Pin and Sleeve Connector, IEC 309, 3P4W HBL460R9W, AC Receptacle, IEC 60309, 3P4W
1083 (See notes 2, 3, 4) Three-phase high voltage (five-wire 3P+N+G), 380-415V, 32A, no customer connector provided Not applicable Not applicable
1084 (See notes 1, 2, 3, 4, 5) Three-phase low voltage (four-wire 3P+G), 200-240V, 60A, IEC 60309 4-pin customer connector HBL460C9W, Pin and Sleeve Connector, IEC 309, 3P4W HBL460R9W, AC Receptacle, IEC 60309, 3P4W
1085 (See notes 1, 2, 3, 4, 5, 6) Three-phase high voltage (five-wire 3P+N+G), 380-415V (nominal), 30A, IEC 60309 5-pin customer connector HBL530C6W, Pin and Sleeve Connector, IEC 309, 4P5W HBL530R6W, AC Receptacle, IEC 60309, 4P5W
Notes
The customer connector must be IEC 60309; prior power cords cannot be reused.
Power cords without inline connectors are rated at 600 V ac. Other power cords are rated as described in the table. Single-phase power cord has 2W+G configuration. Low voltage three-phase power cord has 3W+G configuration. High voltage three-phase power cord has a 3W+N+G configuration .
The conductor size for three-phase power cords is 6 mm² (10awg). The conductor size for single-phase power cords is 10 mm² (6awg).
Power cords that exit the bottom are 4.2 M (14 ft) from the lowest point where they exit the frame to the mating face of the plug or bare leads. Power cords that exit the top are 1.8 M (6 ft) from the highest point from the frame to the mating face of the plug or bare leads.
The IEC60309 receptacle must be installed in a metal-backed box with the green wire ground-connected to the grounding lug within the box. Ensure continuity between the box and the metallic shielding of the liquid-tight conduit.
Feature codes 1080 and 1085 are supported in North America.
中国·北京 联系方式:
1)联系人:   霍经理
2)手 机: 13301272832 (微信同号)
3)QQ: 619804118
4)联系电话:(010)82666745
5)传   真:(010)82666745
6)E-mail:   bjslkc@163.com
7)公司:北京深蓝融鑫科技发展有限公司
8)地址:北京市海淀区西北旺
9)公司地址、乘车路线及公司位置地图


Beijing ShenLan Rongxin Technology Development Co., Ltd. All Rights Reserved.
北京深蓝融鑫科技发展有限公司 版权所有,不得转载.
京ICP备05042544号
